Product Description:

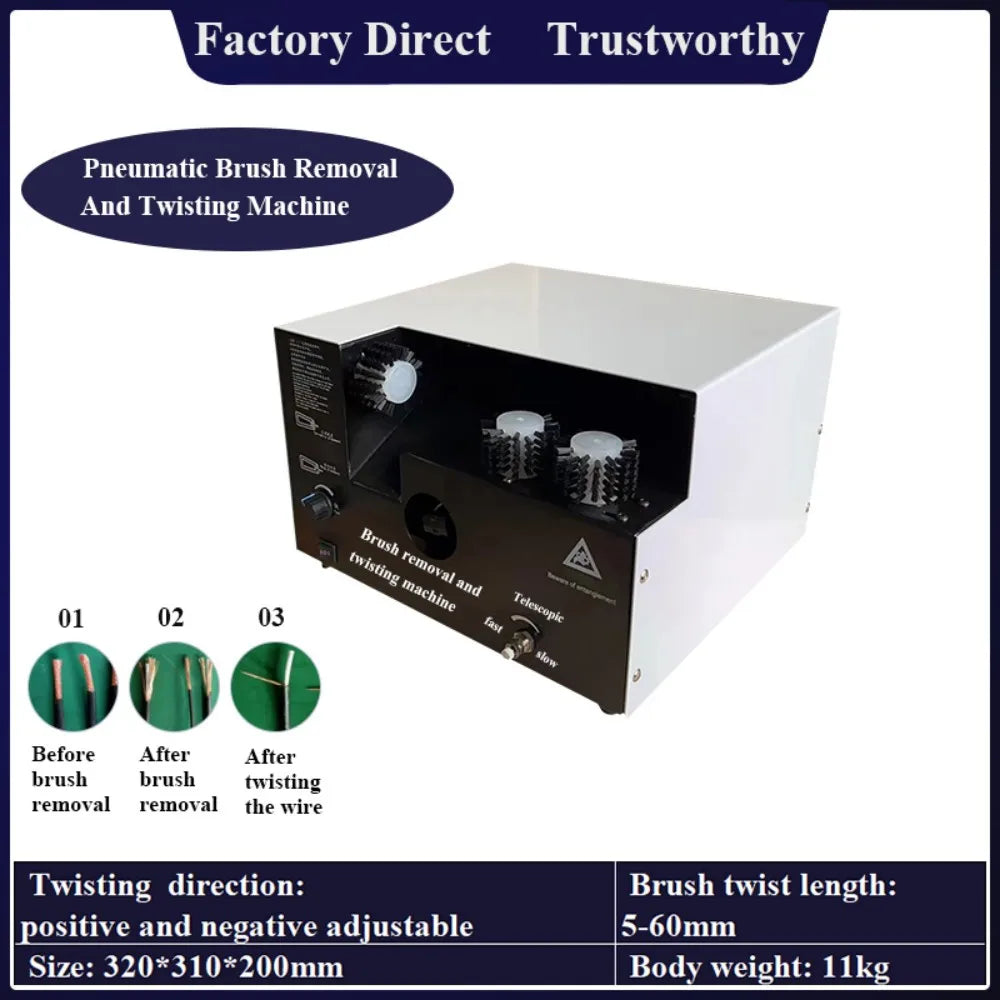

Specifications:

Power ：45W

Weight ：11kg

Size ：31*32*21cm

Function ： Wire - brushing, wire - splitting, wire - twisting

Air pressure ：4 - 6kg/cm²

Wire - splitting speed ：Stepless speed regulation

Wire - twisting length ：5 - 60mm

Wire - twisting direction ：Reversible

Voltage ：110/220V/50 - 60HZ

Product Introduction

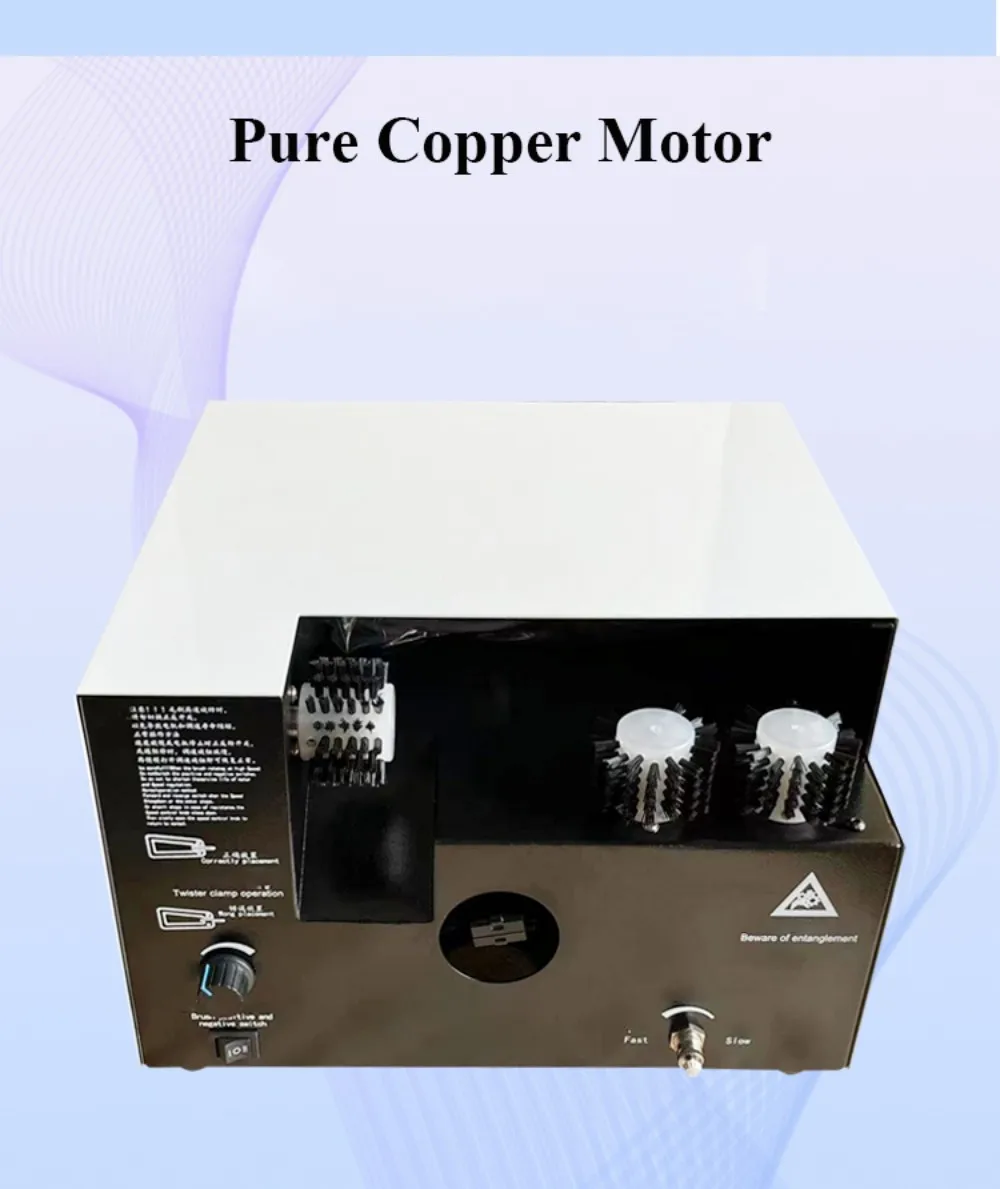

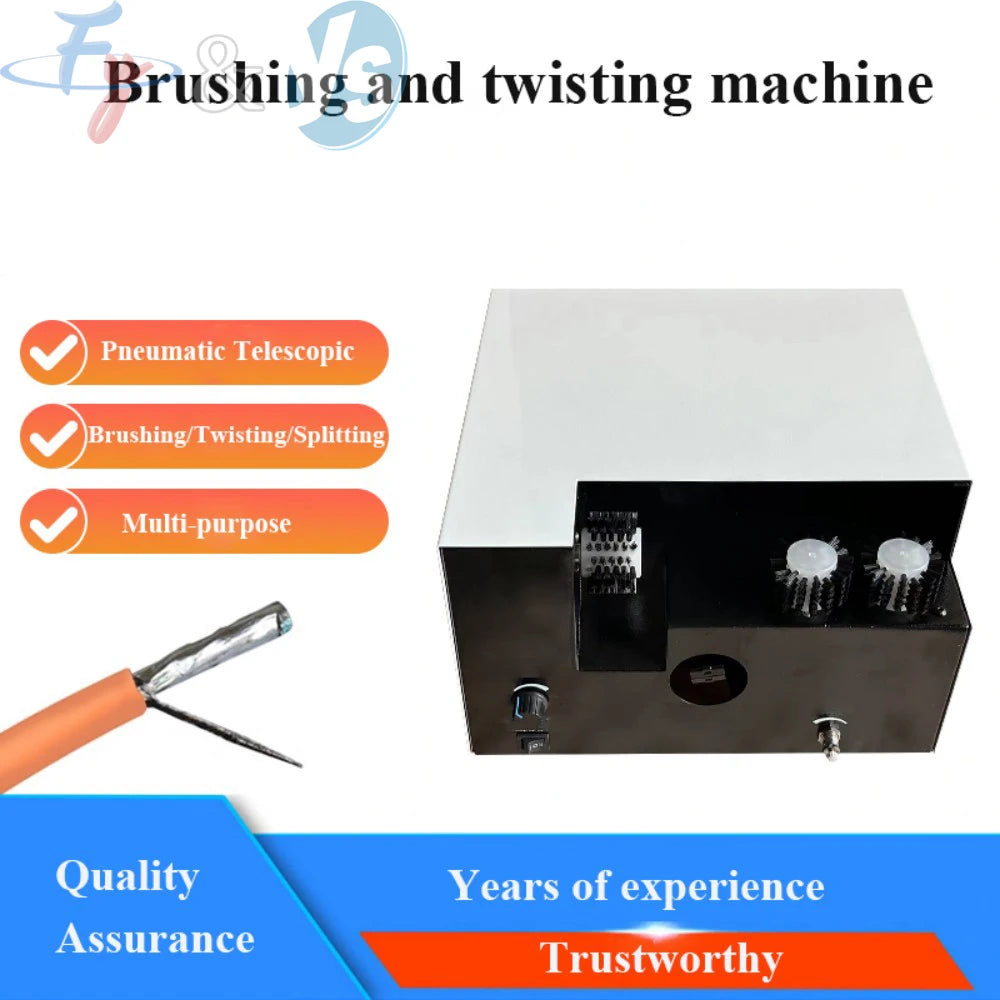

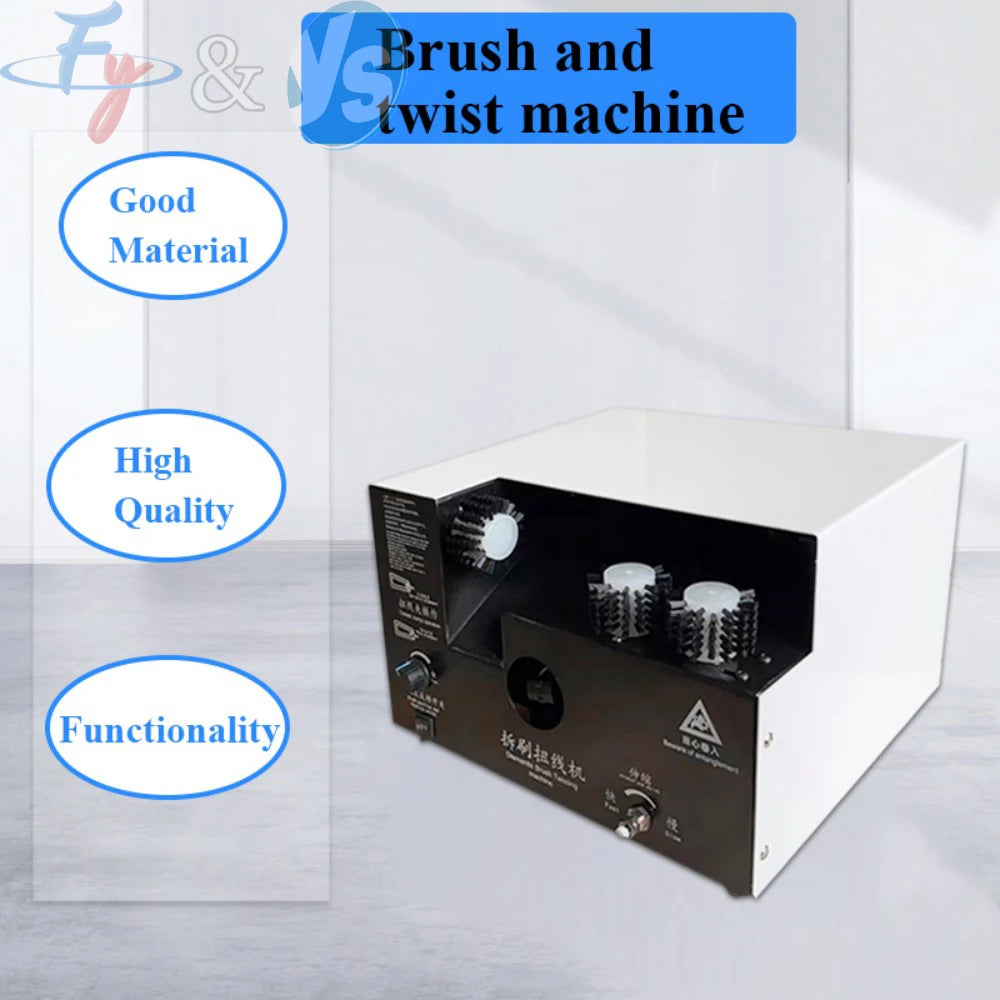

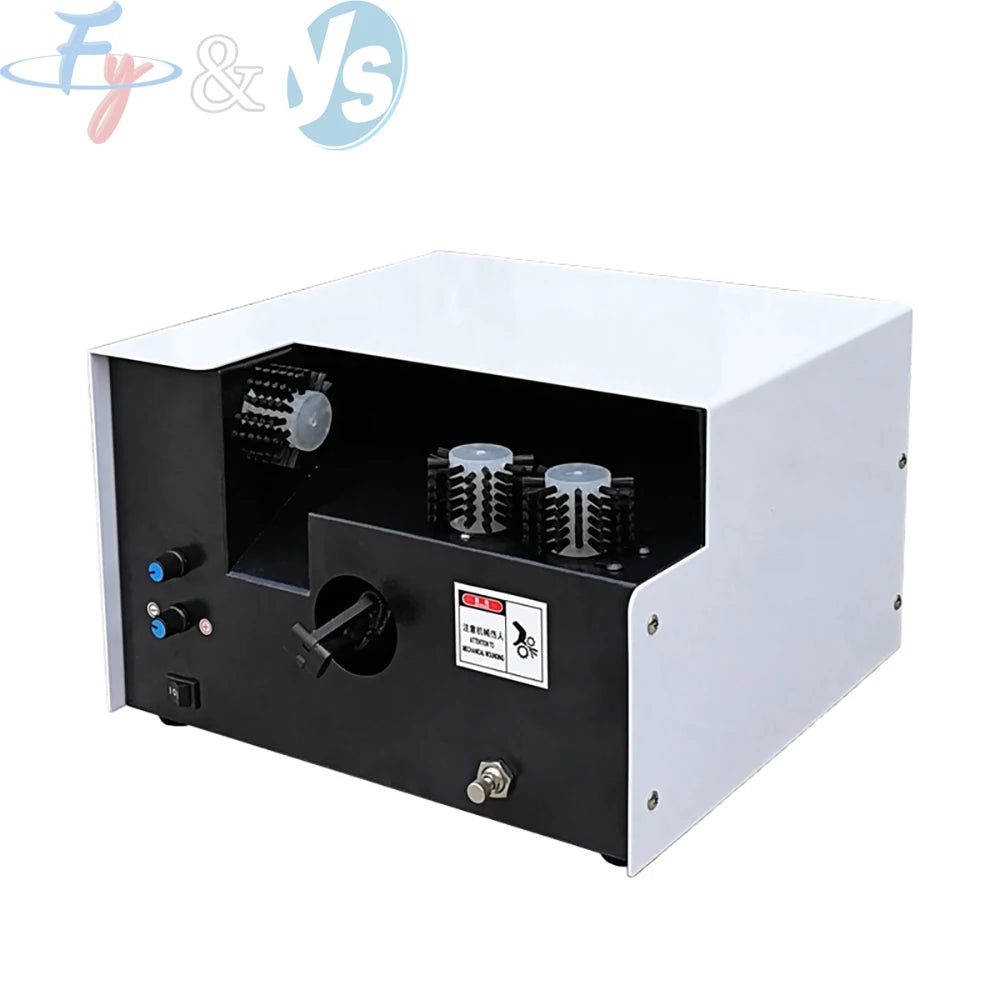

This product is a shielded wire brushing line splitting twisting machine ,suitable for wire stripping, wire splitting, shielding wire processing, Multi-functional with three brush heads for fast replacement, replacing manual work.

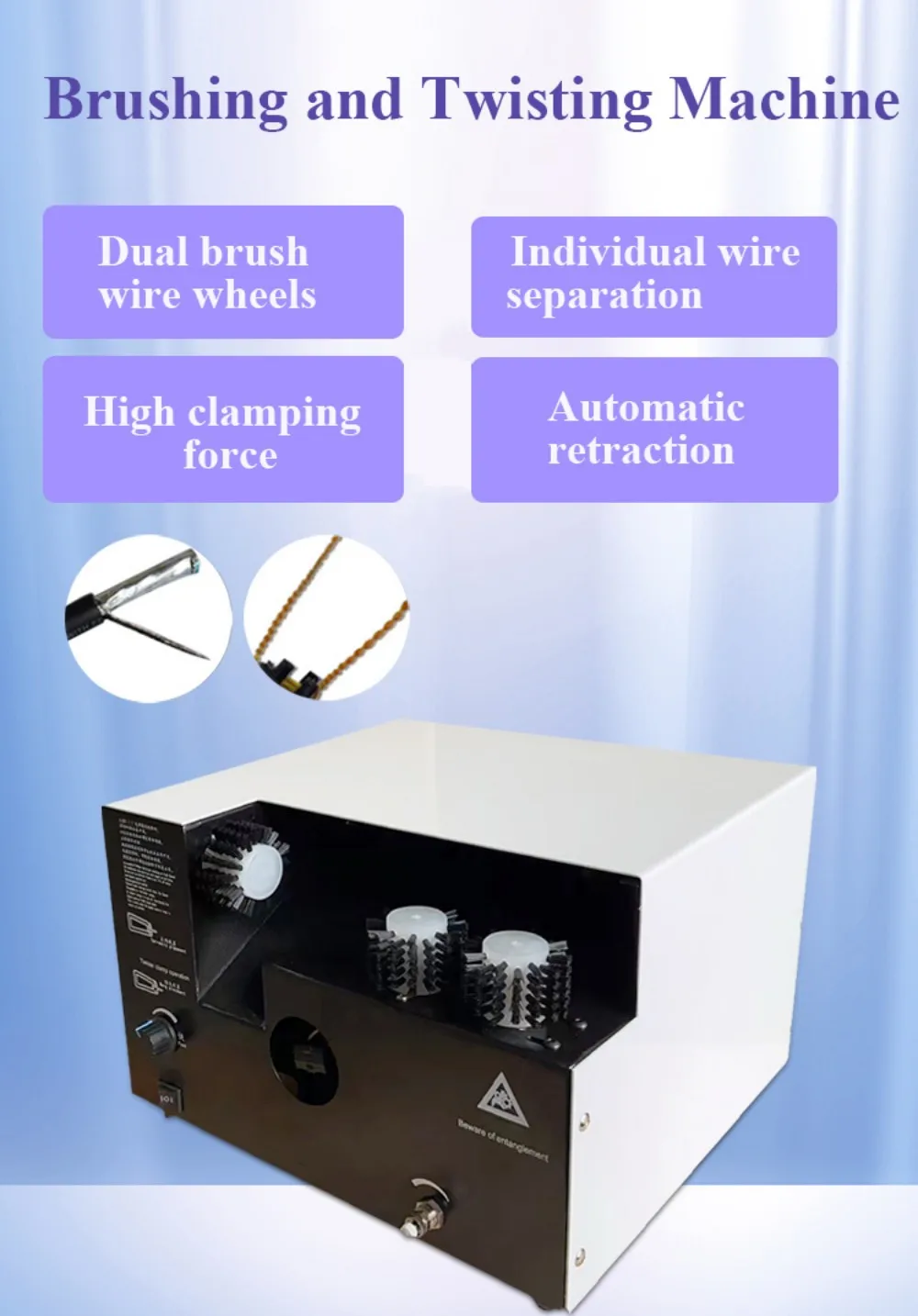

Features:

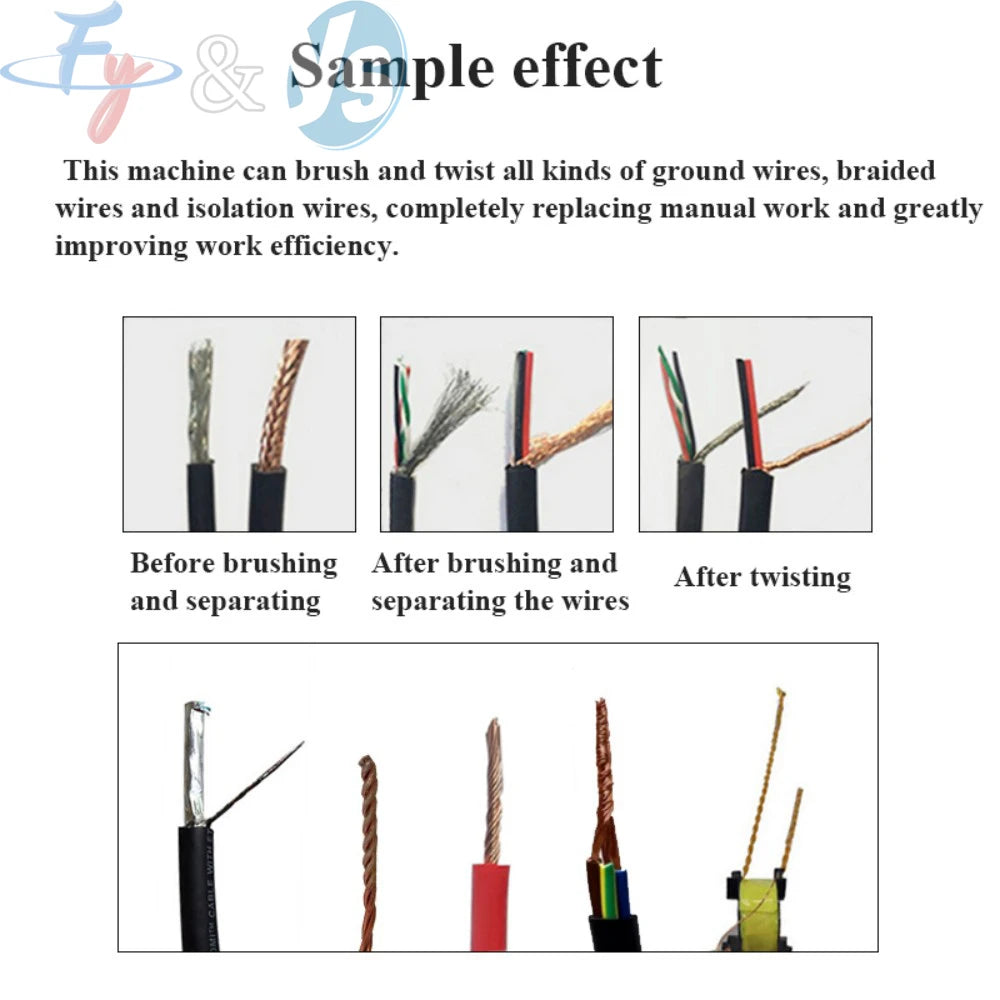

1. All Kinds of Ground Wires, Braided Wires and Isolation Wires Can Be Tightened, Completely Replace Manual Work, Greatly Improving Production Efficiency;

2. The Gripping Hand Adopts Pneumatic Control, Connecting the Air Source, the Gripping Hand Is Automatically Open, Lightly Turn on the Foot Switch During Operation, You Can Complete the Twisting Operation;

3. The Automatic Gripper Adopts an Exposed Design, so That the Copper Wire Is Also Easy to Place;

4. Elastic Clamping, When the Wire Diameter Is Different, There Is No Need to Do Adjustment.

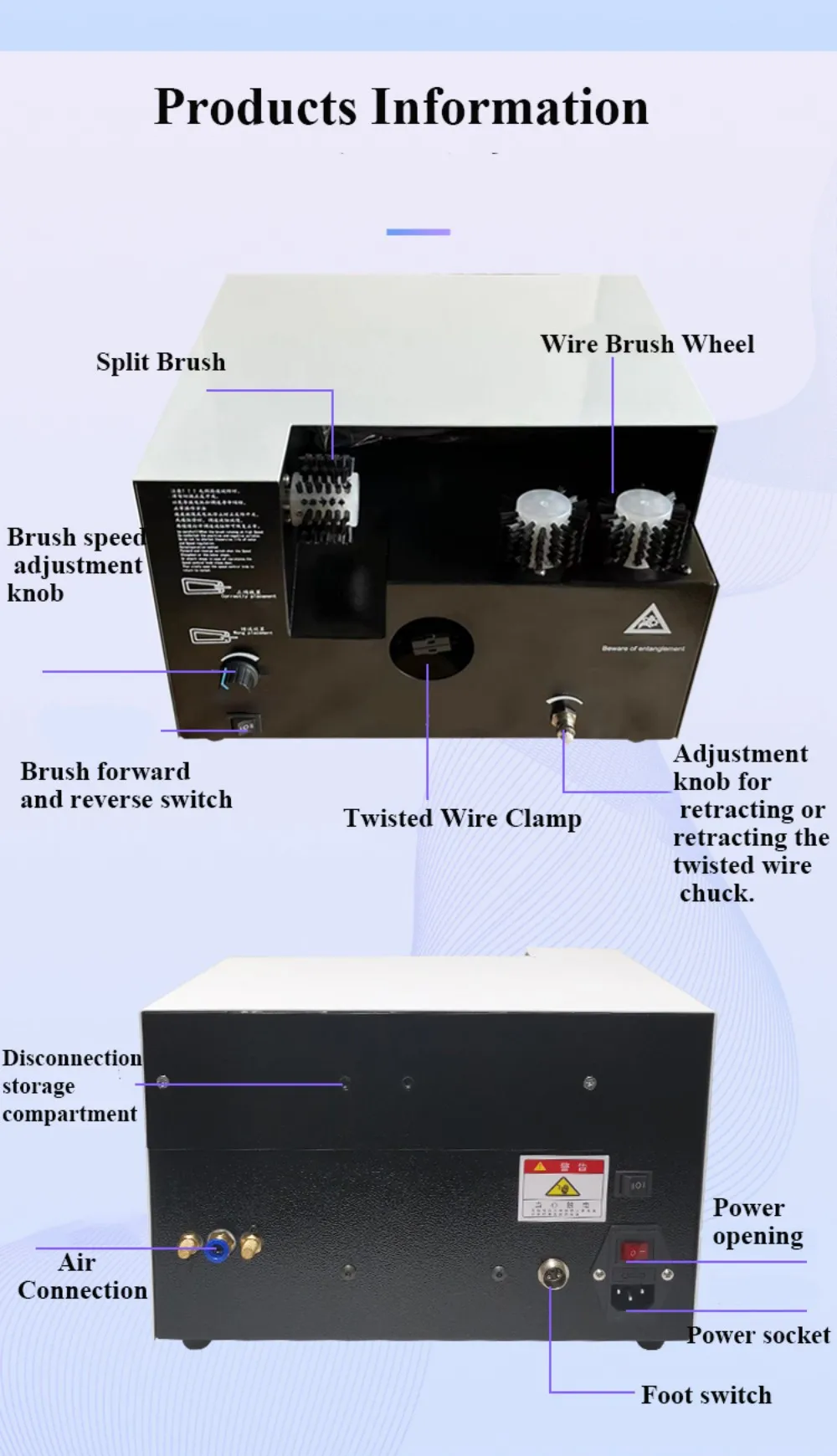

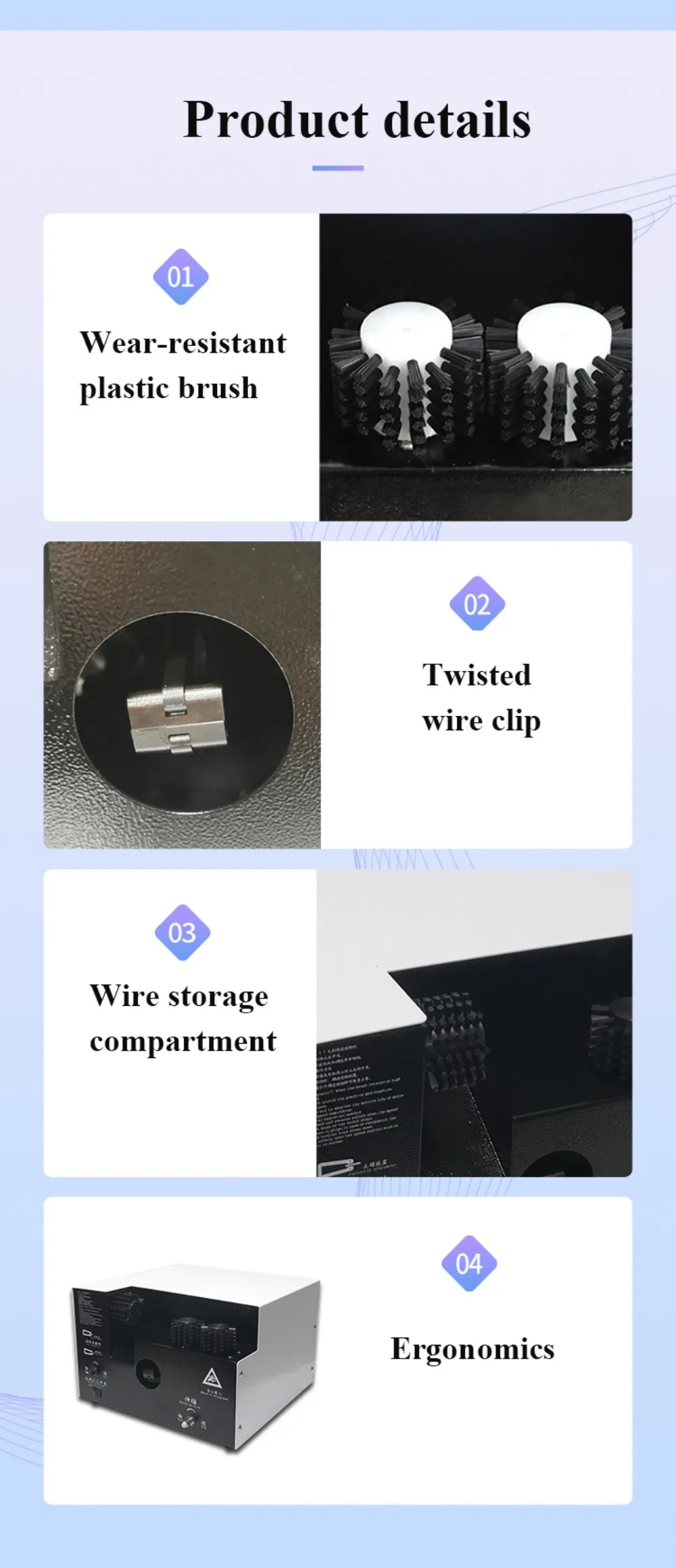

Machine Instructions:

1. Distributing Wire Brush-a Brush That Separates the Shielded Wire from the Core Wire After the Shielding Wire Is Brushed; (in Case of Emergency, Immediately Cut off the Power
Turn off)

2. Wire Removal Brush-a Brush That Makes the Shielded Wire Quickly Straightened, and Can Also Be Used for Peeling; (in Case of Emergency, Immediately Cut off the Power Supply
Switch)

3. Three-brush Speed Adjustment-the Knob to Adjust the Speed of the Brushing Wheel and the Dividing Wheel;

4. Adjusting the Speed of Expansion and Contraction of the Twisting Head-the Adjustment Knob of the Speed of Expansion and Contraction of the Twisting Pliers and the Twisting Strength; (the Rotation Speed Is Not Adjustable

Operate Carefully, Beware of Pinching Your Hands)

5. Three-brush Direction Adjustment-three-brush Forward and Reverse Switch

Twisting Clamp—Twisting Device After Brushing and Splitting;

6. Power Interface-ac Power Access Point (Please Use the Standard Power Supply, Otherwise It Will Not Be Covered by the Warranty)

7. Power Switch-check Whether the Power Is on; (the Light Will Be on When the Power Cord Is Connected)

8. Foot Switch Interface-the Access Point of the Foot Switch

9. Pneumatic Interface-pneumatic Interface (Not Enough Air Pressure Will Cause the Twisting Pliers Head to Not Stretch or Stretch Slowly)

10. Disconnection Storage Grid-the Disconnection Generated During the Brushing Process Is Stored Here (the Baffle Is Removable)
